Description

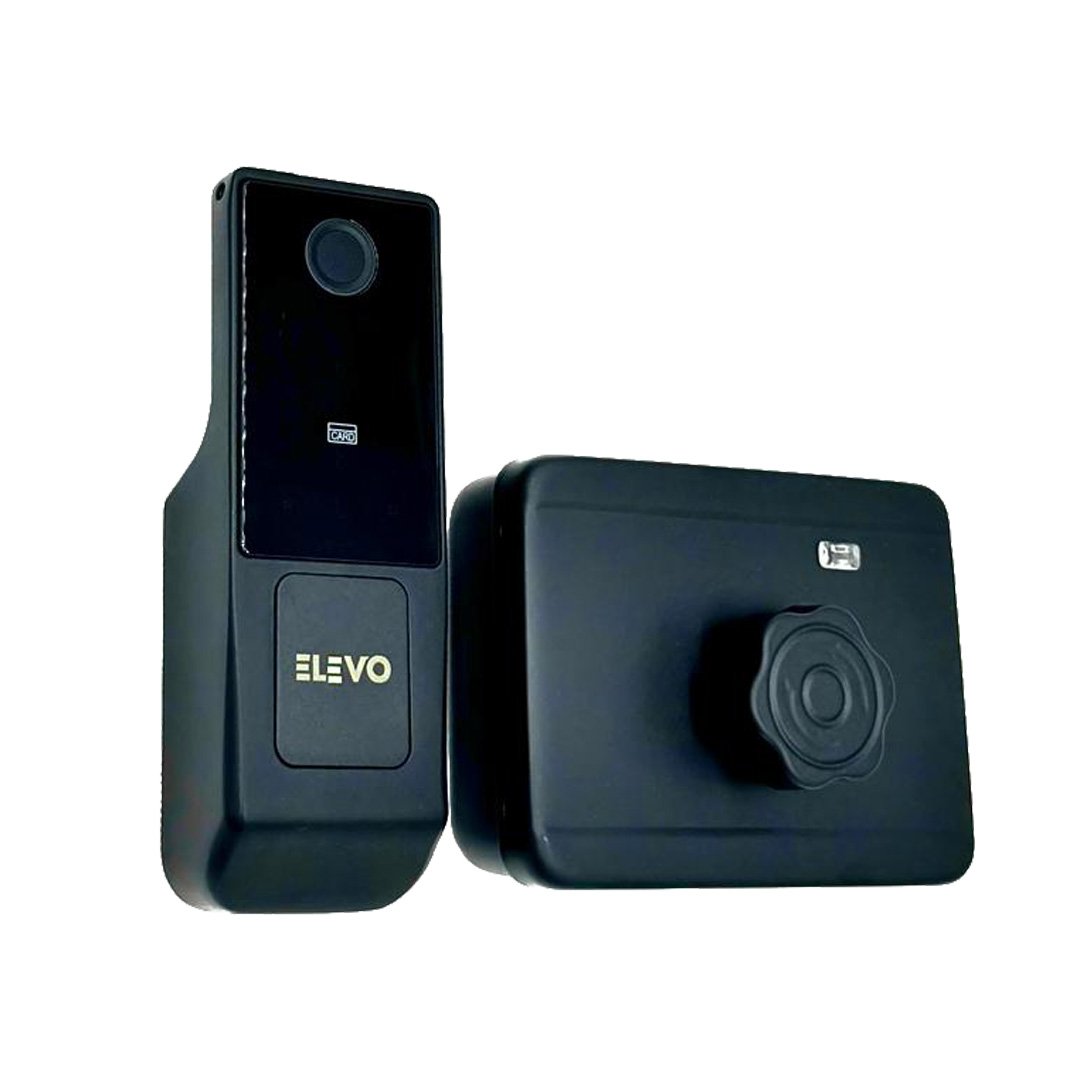

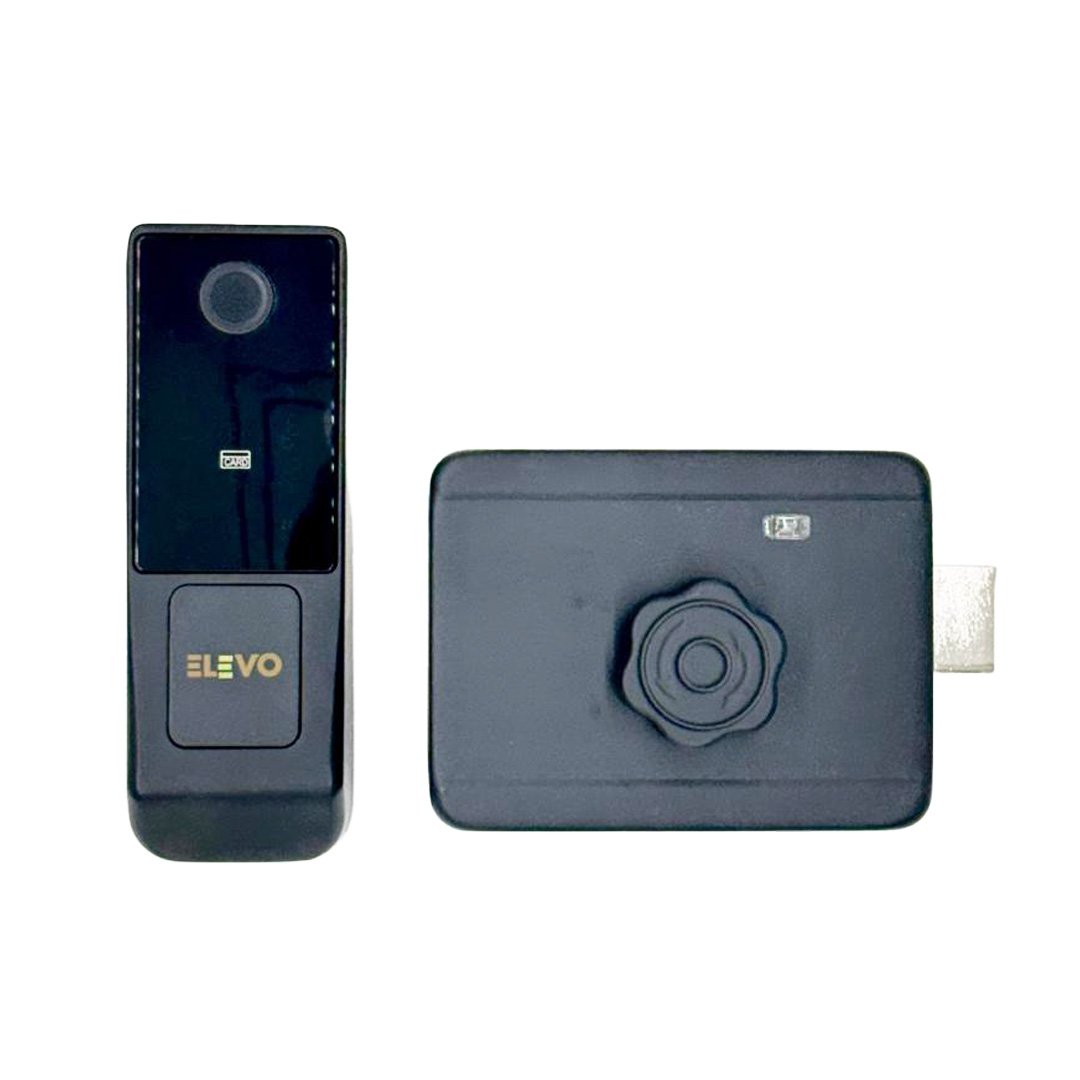

LOCK (PARAMETERS)
Features
- 168MM x 68MM x 45MM / 130MM x 100MM x 40MM
- Aluminium Alloy
- Working power: 6V (4pcs AA Alkaline battery)
- Working humidity: 0%~90%
- Working Temperature: -20°~60°
- Door Thickness: 35~55mm
- Fingerprint: 100, Password: 100, Card: 100
- Unlock ways: Fingerprint, Password, Card, Key, APP
- Wireless Network Protocol: Ttlock BLE, Ttlock WIFIBLE TUYA BLE, TUYA WIFI, TUYA ZIGBEE
- USB Emergency power
- Ideal for: Home, Office, Apartment, Hotel, Rental
Optional multiple configurations
- Fingerprint unlock
- Card unlock
- WiFi unlock

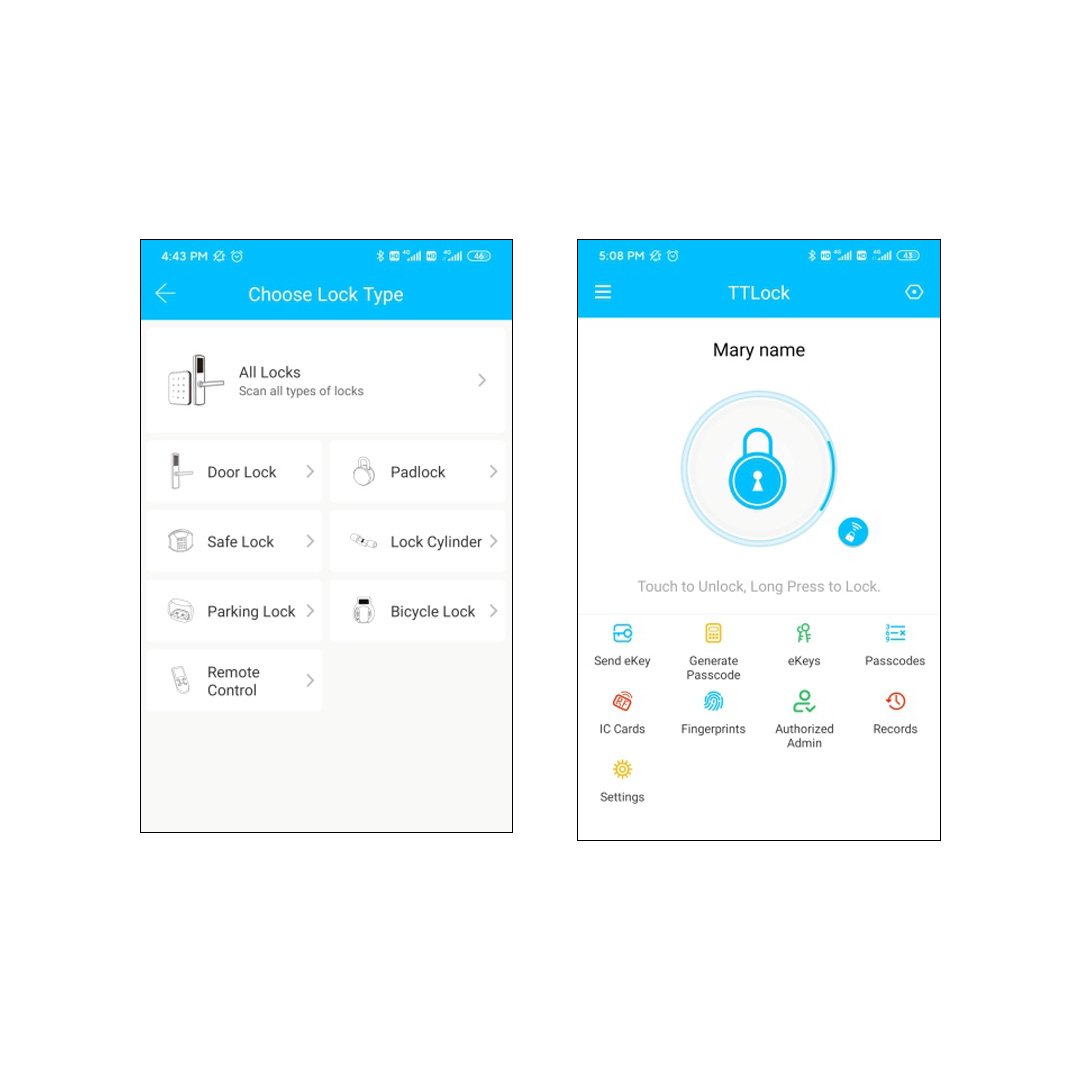

- APP unlock
- Password unlock
- Key unlock
- Bluetooth unlock
Functions Directive Settings
| Function | Setting |
| Set administrator password | * 12 # 123456 # New administrator password # repeat the new administrator password # |
| Change Administrator password | * 12 # Administrator password # New administrator password # repeat the new administrator password # |
| Change user password | * 10 # User password # New password # repeat the new password # |
| Add mobile phone Administrator | * 83 # Administrator password # |
| Add password/IC card/Fingerprint | * 85 # Administrator password # |
| Delete all IC card | * 69 # Administrator password # |
| Delete all Fingerprint | * 70 # Administrator password # |
| Delete all Password (Except Administrator password) | * 71 # Administrator password # |
| Tamper proof alarm | Start: * 32 # Administrator password # 1 #
Close: * 32 # Administrator password # 0 # (If without administrator password, using 123456 as the administrator password) |
| Voice switch | Chinese: * 39 # Administrator password # 1 #
English: * 39 # Administrator password # 2 # (If without administrator password, using 123456 as the administrator password) |
| Demo mode start | When without administrator, input 24679 # |
| Motor aging tests | When without administrator, input 35896 # |
| Temporary normally open | After unlocking, input 123 # |
